LEGACY DREADNOUGHT

LEGACY D • LEGACY 18 • LEGACY 12-FRET


LEGACY D MODEL

Traditional Dreadnought shape with forward-shifted, scalloped bracing offering a huge bottom end and room filling presence.  Crystal clear trebles and open mid-range. The ideal instrument for flat picking and light to hard strumming, this guitar will please the bluegrass picker, worship leader and entertainer alike.

Specifications:
Body Style - 14 fret traditional dreadnought
Scale Length - 25.4”
Neck Profile - Oval, Low Oval or Modified Vee
Upper Bout Width - 11.5"
Lower Bout Width -  15.625"
Max Body Depth - 4.875”
Fingerboard Width @ Nut - 1.750”
Fingerboard Radius - 16”
Bridge Pin Spacing - 2.187”
Recommended String Gauge - Medium Steel

Standard appointments include choice of master grades East Indian Rosewood or Honduras Mahogany back & sides / Scalloped Adirondack Spruce braces / Solid Mahogany neck & blocks /  Waverly Tuners / 5-ply TKL or Ameritage Case.

See pricing & options page for a full list of standard and optional appointments.

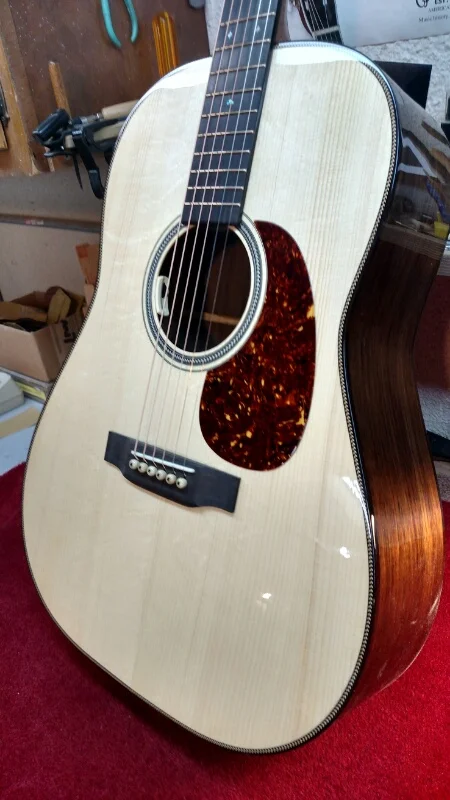

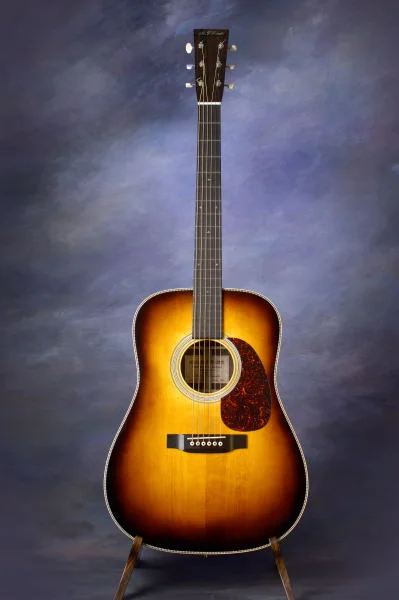

Legacy Dreadnought Gallery

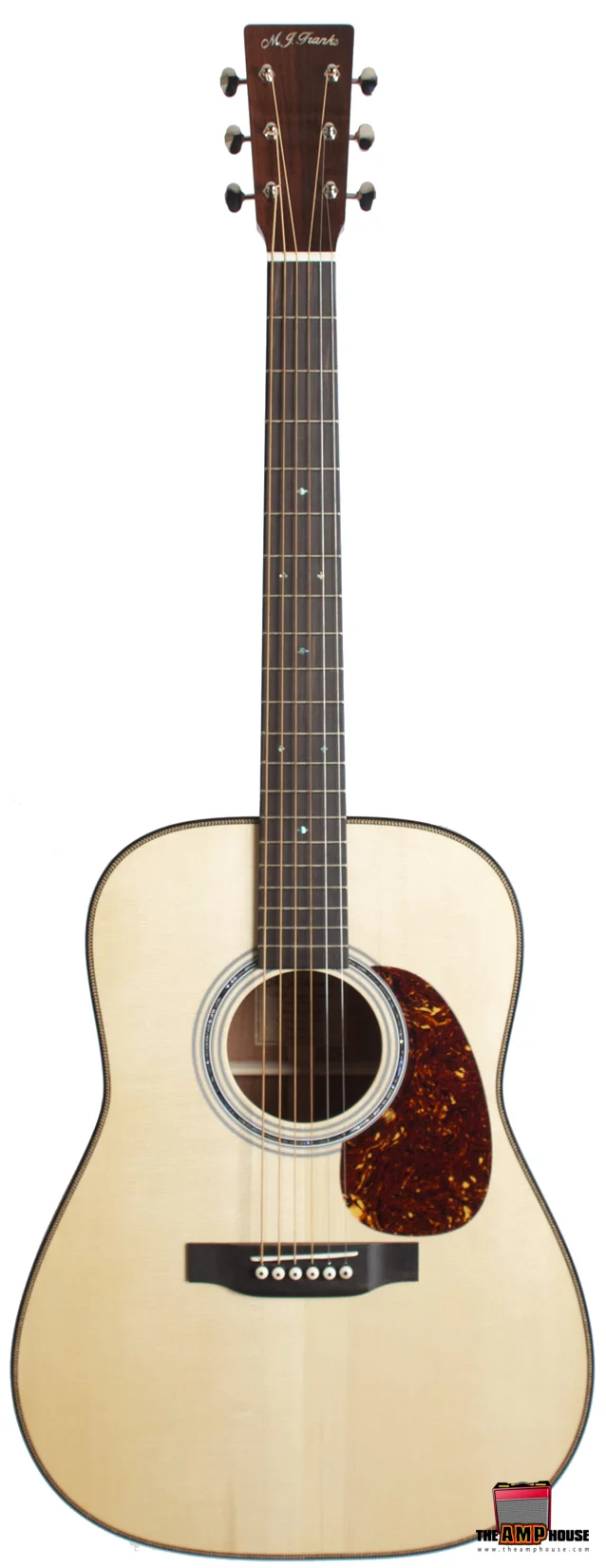

 Photo courtesy of The Amp House

Photo courtesy of The Amp House

LEGACY 18 MODEL

Traditional Style 18 Dreadnought with Honduras Mahogany back, sides and neck. The soundboard is Master-Grade Red (Adirondack) Spruce. Bindings are vintage celluloid tortoise. Matching Red Spruce top braces are forward-shifted and scalloped offering an exceptionally balanced tone across the strings.

The Legacy 18 is currently played weekly on the stage of the Grand ole Opry by Joe Miller of Bobby Osborne & Rocky Top Express.

Specifications:
Body Style - 14 fret traditional dreadnought
Scale Length - 25.4”
Neck Profile - Oval, Low Oval or Modified Vee
Upper Bout Width - 11.5"
Lower Bout Width - 15.625"
Max Body Depth - 4.875”
Fingerboard Width @ Nut - 1.750”
Fingerboard Radius - 16”
Bridge Pin Spacing - 2.187”
Recommended String Gauge - Medium Phosphor-Bronze

Standard appointments include master grade Honduras Mahogany back & sides / Adirondack (Red) Spruce Soundboard / Scalloped Adirondack Spruce braces / Solid Mahogany neck & blocks /  Waverly Tuners / Vintage Celluloid Tortoise bindings / 5-ply TKL or Ameritage Case.

See pricing & options page for a full list of standard and optional appointments.


Legacy 18 Gallery



LEGACY 12-FRET MODEL

Slope-shouldered, deep body design which is reminiscent of the original Martin Dreadnought introduced in the early 20th century. Rich and superbly balanced tone with plenty of volume for finger-style or strumming.

Specifications:
Body Style - 14 fret traditional dreadnought
Scale Length - 25.4”
Neck Profile - Oval, Low Oval or Modified Vee
Upper Bout Width - 11.5"
Lower Bout Width - 15.625"
Max Body Depth - 4.875”
Fingerboard Width @ Nut - 1.750”
Fingerboard Radius - 16”
Bridge Pin Spacing - 2.250”
Recommended String Gauge - Medium Steel


Legacy 12-FRET Gallery
